Pilot Plants Look Different

In order for pilot plants to work and extract metals, total residence times must be about the same as full-scale plants. The chemistry cannot be neglected. Typical residence times are 2-3 minutes for the pumper and auxiliary mixing stages. Equations 7 and 8 must also be adhered to.

Example 6: The pilot plant in Example 1, which was a true scale-down of the other examples, only had a mean residence time of 9.7 seconds. It is recommended to have a mean residence time of at least 30 seconds in the pumper stage to achieve the desired mass transfer. How?

To do this, the flow rate must be reduced. This can be done be reducing the pumper speed or the pumper diameter. Since the tank diameter is 0.305 m (12”) and Z/T=0.8 the volume is V=22.7 liters. If the residence time is to be 30 seconds the flow rate will be Q=0.757 L/s (12 GPM). Based on Figure 6, the optimum efficiency (e=21.2%) of a R300 with DO/D=0.33 is at Nq=0.065. With D=0.152 m (6”) and Equation 1, N=197 RPM. From Figure 5, Nh(Nq=0.065)=0.705. Thus, using Equation 3, H=0.0892 m (3.51”) and using Equation 2, P=3.13 Watts. The power dissipation is only P/V=0.14 kW/m³ (0.69 Hp/1000 gallons). The operating range according to Equations 7 and 8 is 0.52 kW/m³ < P/V < 0.83 kW/m³. Therefore, there would be a lot of phase separation if the pilot plant ran at this condition.

This scenario is typical for pilot plants. In the past, the solution was to make the pumper as inefficient as possible. In other words, the pumper was designed to waste energy to achieve an operating condition, which could maintain a uniform dispersion with the right amount of residence time. Three methods were most common:

Choose a low hydraulic efficiency condition from the beginning. This means that Nq must go toward zero or go toward the maximum allowed for this condition (Figure 6). The former results in a very high head using very large diameter pumpers at slower speeds and the latter results in almost no head developed with very small diameter pumpers at very high speeds (Figures 4 and 5). Neither is usually practical. Here is one suitable solution that goes toward the higher end of Nq: D/T=0.167, D=2”=0.051 m, N=2165 RPM, TS=5.76 m/s, Nq=0.16, Nh=0.067, Np=1.69, Q=0.757 L/s, H=0.114 m, P=26.9 W, V=33.2 L, P/V=0.81 kW/m³, q_Res=43.9 s, Z/T=1.17, P/V-range=0.69-1.16 kW/m³, e=3.1%.
Increase the gap between the pumper and the orifice plate: This reduces the head and flow, but increases the power drawn.
Add ribs to the topside of the pumper disk: This adds internal flow and recirculation, which increases the power draw, but maintains the head and flow [1].

All of these methods have an unfortunate drawback. Because the power is increased using these methods, the hydraulic efficiency is dramatically decreased and the concentration of fines increases, as does the entrainment levels.

To fix this problem, optimum pilot plants have a minimum of two impellers in the pump stage. The lower impeller is designed to do the pumping and the upper impeller(s) are designed to do the mixing at the lowest possible power. This method also works for full-scale plants with high Z/T as for example at Sociedad Minera Cerro Verde in Peru [5].

The upper impellers are the same type as those found in the auxiliary stages. Over time, up-pumping A310s have proven to be ideal for this. As a general rule of thumb, they require 1/10^th of the power of the pumpers to maintain a uniform dispersion. They generate about 3-13 times the flow rate of the pumpers at very little shear [3-6]. These need to be designed in an optimum operating range, too. The optimum P/V-range is not as easy to describe as the pumpers, since now the distance to the surface, COV, is very important. If two auxiliaries are used, the spacing, S, between the two impellers, is used instead of COV for the lower one. The following correlations can be used as guidelines.


		(9)


		(10)

These equations are valid for 0.18 < OB/D < 0.6, 0.5 < COV/D < 2.3, and 0.2 < COV/T < 0.9. Assuming that Z/T=0.5, D/T=0.375, COV/D=1.11, the operating range is 0.056 < P/V < 0.065 kW/m³. More power is required to keep a stable dispersion the taller the tank, the higher the coverage and the longer the residence time.

Designing the Pumper Stage with Multiple Impellers

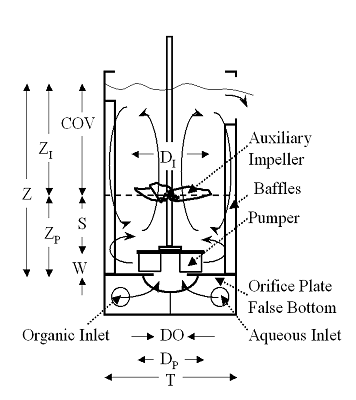

To overcome the problem when P/V is too low at optimum hydraulic efficiency, the pump stage is conceptually split into two or more zones. Figure 7 shows a schematic of this concept with 2 zones, each having one impeller. The pumper is designed to operate in the lower zone and the auxiliary in the upper zone. The boundary that splits the pumper stage in two zones is generally the location of the auxiliary impeller. The height of the lower zone is Z_P and Z_I is the height of the upper zone. In the case of a dual impeller pumper stage, COV = Z_I.

Figure 7: Schematic of a dual impeller pump stage.

The design that optimizes the hydraulic efficiency has already been done in Example 6. The problem was that P/V was too low to maintain a stable dispersion. It was only 0.14 kW/m³. The optimum range was 0.65 kW/m³ < (P/V)_Opt < 1.09 kW/m³.

The solution of Example 6 showed the power of the pumper to be P_Pumper=3.13 W. An iterative process begins to find the optimum volume. The procedure is to assume a Z_P. Then calculate Z_P/T, which is the Z/T for the pumper zone. Then calculate V_P, which is the volume of the pumper zone. For a square pump box, V_P = T²*Z_P. The mean residence time, q_Res,P, of the pumper zone is now equal to the volume of the pumper zone divided by the flow rate (0.757 L/s). The P/V_P of the pumper zone is then P_Pumper/V_P. Now, using Equations 7 and 8, determine the upper and lower range of P/V. If P_Pumper/V_P is within the range of operating P/V, the assumption of Z_P was okay. If not, another Z_P needs to be tested until P_Pumper/V_P is acceptable. A spreadsheet comes in very handy now.

For this example, a possible solution is Z_P = 0.113 m (4.4”). Z_P/T=0.37. V_P=10.5 L. q_Res=13.9 s. P_Pumper/V_P=3.13/10.5 = 0.30 kW/m³. The operating range is 0.29 kW/m³ < (P/V)_Opt < 0.43 kW/m³.

The next step is to determine the auxiliary, upper zone of the pump box. The A310 up-pumping auxiliary impeller is located at Z_P.

Similar to the pumper zone, the first step is to determine Z_I, Z_I/T, V_I, q_Res,I, and P_I/V of the auxiliary zone. The flow and power numbers, 0.56 and 0.30, respectively, of the A310 are standard and are not affected by the net flow through the pumper box [9]. Initially assume D/T=0.375 for the A310. Z_I=Z-Z_P = 0.13 m (5.15”). Z_I/T=0.43. COV_I=0.13 m. COV_I/D=1.15. S/D= 0.99, V_I=12.2 L. q_Res=16.1 s. P_I/V_I=0.21/12.2 = 0.0172 kW/m³. Now using Equations 9 and 10, the operating range is 0.075 kW/m³ < (P/V)_Opt < 0.093 kW/m³. Clearly, P_I/V_I is much less than the lower operating range. This would result in the disengagement of the two phases.

Next step is to either try a larger A310 impeller, or to see if a second auxiliary impeller is needed. The A310s cannot get too large. With a S/D_I=0.99, there is not enough room for another impeller. If the level was higher, a second auxiliary should be examined.

Increasing the diameter of the A310 to 0.51T does work. D=0.155 m (6.1”). COV_I/D=0.84. COV_I/T=0.86, S/D=0.73. P_I/V_I=0.97/12.2 = 0.080 kW/m³. Now using Equations 9 and 10, the operating range is 0.075 kW/m³ < (P/V)_Opt < 0.093 kW/m³. The overall mean residence time is still 30 seconds. The auxiliary impeller creates 6.5 times the flow of the pumper resulting in a recirculation time of just 2.5 seconds, which is ideal for high mass transfer with low shear.

Thus, this pilot plant will have one pumper and one auxiliary impeller in the pump stage. When planning for a pilot plant, variable speed drives and impellers that can be adjusted on the shaft are very important, since equations 7-10 are approximate. If air entrainment is noticed, the impeller speed can be reduced and/or the upper impeller lowered. If puddles of organic are noticeable at the surface, the impeller speed can be increased, and/or the upper impeller put closer to the surface.

This technique has also been successfully used on more than 8 full-scale SX plants in order to maximize efficiency such as Sociedad Minera Cerro Verde, Mexicana del Cobre, Soquimich, Quiborax, IMC, Phelps Dodge, CS Metals and Cal Energy [6].

It is conceivable to have just one mixing tank, with one pumper and several auxiliaries instead of having multiple tanks with one impeller in each. It is also conceivable to have a pumper box with the smallest possible volume (large pump) and do all the mixing in the auxiliaries. Both methods would increase hydraulic efficiency by reducing the overall power consumption.

Scale-up of the Auxiliary Tanks

Click this title to continue with this article.

Click here to go to the first page of this article. Click here to go to the previous page of this article.
